Outdoor Trim, Mouldings, & Column Wraps

Fine details bring everything together. Get all the exterior trim and moulding advantages of premium PVC performance — without the premium price. Plus, they’re guaranteed not to swell, rot, split, cup, craze, or delaminate even under the harshest weather conditions. Show your attention to detail by picking the perfect trim and mouldings to accentuate your home's exterior style and aesthetic.

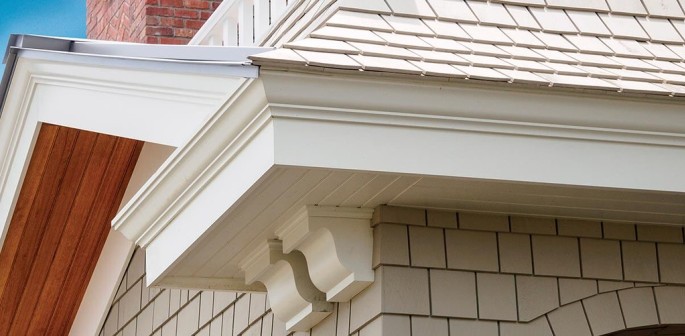

Wolf & Versatex Outdoor Trim

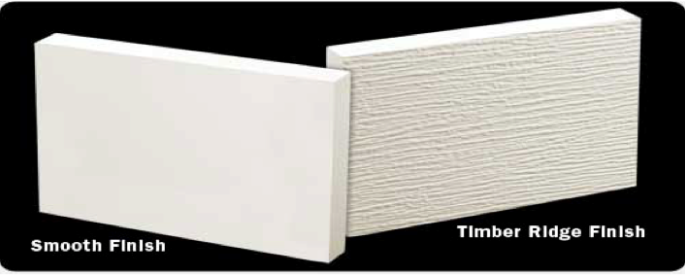

Wolf Trim offers all the advantages of premium PVC performance without the premium price. Wolf Trim is available in smooth matte and rich woodgrain finishes.

• Lightweight, high-cell density that won't absorb moisture
• Will not swell, rot, split, cup, craze, or delaminate
• Can be cut, drilled, routed, mitered, nailed, or glued just like wood - no special tools required
• Specialty items include edge and center bead (E&CB), plain and routed corners, and rabbeted and routed trim boards.
• Limited lifetime warranty

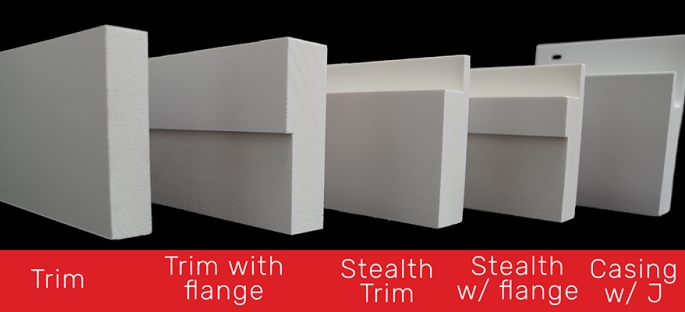

PVC Trim Sizes Available

TRIM WITH FLANGE		Length
Nominal Sizes	Actual Sizes	18’
5/4” x 4”	1” x 3 1/2”
5/4” x 6 ”	1” x 5 1/2”

STEALTH TRIM		Length
Nominal Sizes	Actual Sizes	18’
5/4” x 4”	1” x 3 1/2”
5/4” x 6 ”	1” x 5 1/2”
5/4” x 8”	1” x 7 1/4”

• Custom lengths and widths available in "Smartpack" quantities.

STEALTH WITH FLANGE		Length
Nominal Sizes	Actual Sizes	18’
5/4” x 4”	1” x 3 1/2”
5/4” x 6 ”	1” x 5 1/2”

STEALTH CASING WITH J-CHANNEL		Length
Nominal Sizes	Actual Sizes	18’
5/4” x 4”	1” x 3 1/2”
5/4” x 6 ”	1” x 5 1/2”

PVC Sheet

With our sheet goods, possibilities are endless and limits are nonexistent. VERSATEX uses the most up-to-date extrusion technology to control sheet thickness tolerances to half that of the competition. The result is a more consistent sheet providing builders and fabricators high yields, less scrap, and a higher quality finished product for applications such as pergolas, arbors, gingerbread, gables, and much more. VERSATEX features the most comprehensive sheet stock available, ranging from as thin as 1/4” to a full 1 1/2”.

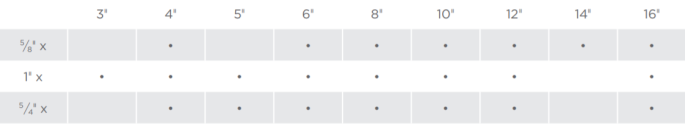

PVC Sheet Sizes Available

Width & Length (feet)
Actual Thickness	4x8'	4x10'	4x12'	4x18'	4x20'
1/4"
3/8"
1/2"
5/8"
3/4"
1"
1 1/4"
1 1/2"

• 5' wide Sheets available in certain sizes and special quantities
• Custom lengths available in “Smartpack” quantities
• 1 1/2” are subject to extended lead times
• Beaded Sheets available in T&G profiles

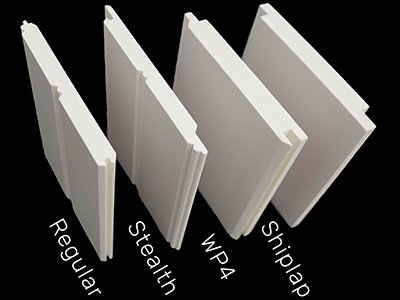

Tongue & Groove Beadboard

With the widest range of beaded and tongue-and-groove profiles in the industry, no one gives you more options than VERSATEX. Their line includes traditional beadboard and beaded sheet, Stealth beadboard, v-grooved WP4, and shiplap options. As with many of their profiles, VERSATEX T&G options give you design and installation flexibility.

• Their traditional beadboard profile is a full 5 1 / 2” wide, providing 5% more surface coverage than many competitors.
• It is also the only PVC beadboard that meets or exceeds UL580 class 90 wind gust test standards, making it ideal for coastal applications.
• Their Stealth beadboard features an extended leg, making it easier to nail than traditional beadboard, thus speeding up the installation process.

PVC Beadboard Sizes Available

T&G PROFILES
Nominal Size	Actual Size		Length
			8’	10’	18’
1/2” x 4” (Regular)	1/2” x 3 1/2”
1/2” x 6” (Regular)	1/2” x 5 1/2”
1” x 6” (Regular)	3/4” x 5 1/2”
1/2” x 4’ (Sheet)	1/2” x 4’

• Special 3/4” x 4” x 18’ Stealth and 3/4” x 3 1/2” x 18’ Regular Beadboard available in “UNIT” quantities.
• All Beadboard except 1/2” x 4’ Sheet available in “Smartpack” quantities.

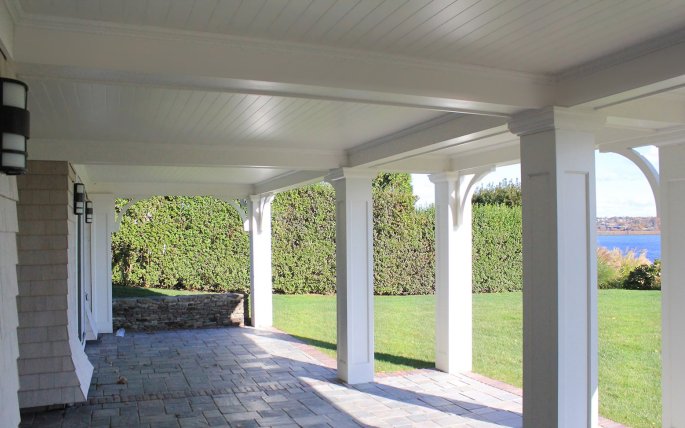

WP4 / NICKEL GAP PROFILE
Nominal Size	Actual Size	Length
1” x 6”	3/4” x 5 1/2”

SHIPLAP
Nominal Size	Actual Size	Length
1” x 6”	3/4” x 5 1/2”
1” x 8”	3/4” x 7 1/4”

STEALTH BEADBOARD
Nominal Size	Actual Size		Length
			8’	10’	18’
1/2” x 4” (Stealth)	1/2” x 4”
1/2” x 6” (Stealth)	1/2” x 6”

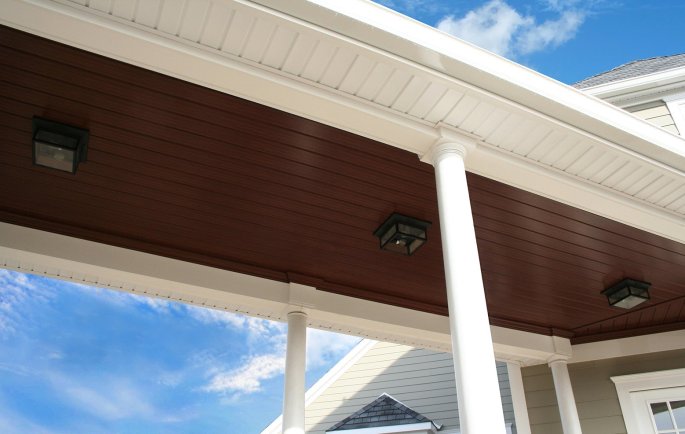

The Canvas Series is the newest innovation in cellular PVC trim. Add contrast to your next project’s porch ceiling or soffit, add a feature wall, or just let your imagination guide you. With the Canvas Series, VERSATEX delivers the rich look of hardwood along with maintenance-free convenience.

Profile	Actual Size		Length
				16’	18’
Stealth Bead	1/2” x 6”
WP4	3/4” x 5 7/16”
4” Crown	9/16” x 3 5/8”
Bed Mould	9/16” x 3/4”

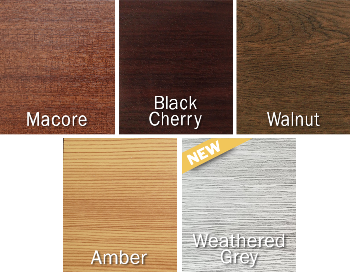

All profiles available in Black Cherry, Macore, Walnut, Amber and Weathered Grey finishes. For use on porch ceilings, accent walls, indoor applications, etc. Color-matched touch-up kit included with each order. Handling guide available here.

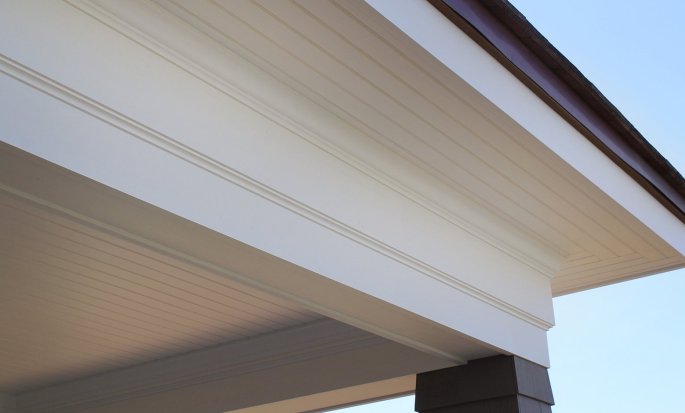

Wolf & Versatex Mouldings

Wolf Mouldings are made with the same high-cell density PVC as our Wolf Trim and are available with a wide variety of lengths and widths in more than 30 profiles. They have the same durable, low-maintenance features as Wolf Trim — and the same money-saving value, too.

FEATURES

• Easy to work with Lightweight, high-cell density PVC Profile extruded for a clean finish

• Won’t absorb moisture

• Can be cut, drilled, routed, mitred, nailed or glued just like wood - no special tools required

• Can be heat formed

• Suitable for ground masonry contact applications

• Never needs to be painted — unless desired

• Matching Cortex® plug fastening system available

• 25-Year Limited Warranty

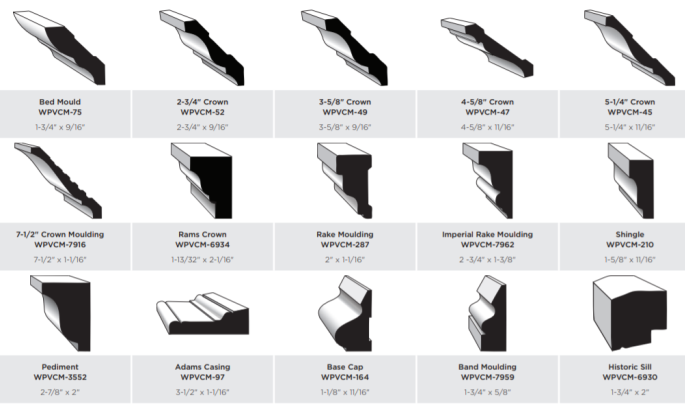

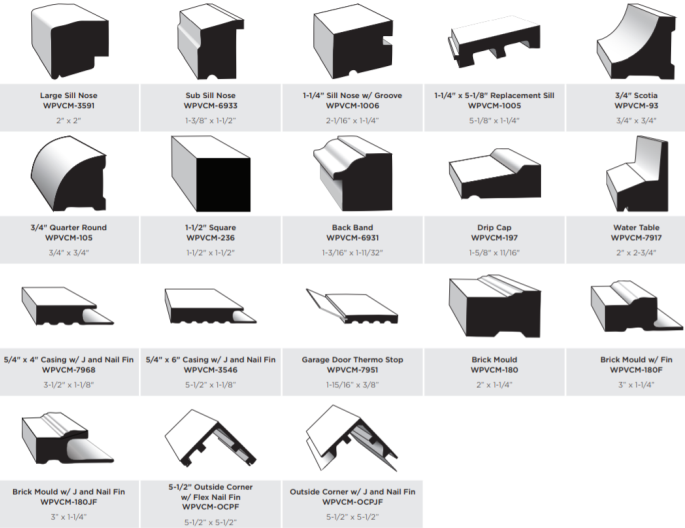

PVC Moulding Profiles

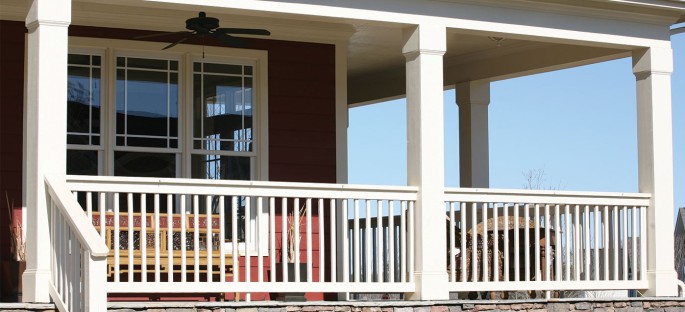

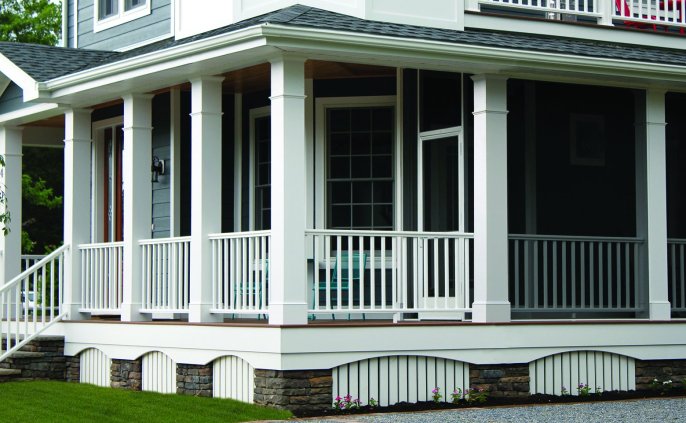

Wolf & Versatex Column Wraps

Wolf Column Wraps provide quick, easy installation around structural supports. Available in four sizes, Wolf Column Wraps won’t peel, rot or absorb moisture. Plus, the patented snap design makes it easy to give homes a classy finishing touch and long-lasting good looks.

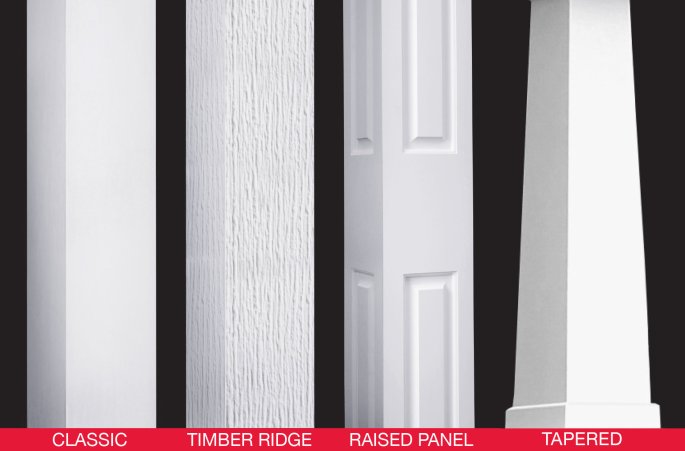

Column Wrap Profiles

Column Wrap Sizes

CLASSIC + TIMBER RIDGE VERSAWRAP
Nominal Size	Actual Inside	Actual Outside	8’6”	10’	12’
4” x 4”	3 3/4” x 3 3/4”	4 3/4” x 4 3/4”
6” x 6”	5 3/4” x 5 3/4”	6 3/4” x 6 3/4”
8” x 8”	8 1/2” x 8 1/2”	9 1/2” x 9 1/2”
12” x 12”	9 3/4” x 9 3/4”	11 1/4” x 11 1/4”

Our Classic, Timber Ridge and Raised Panel styles are created from a single piece of VERSATEX cellular PVC with three pre-mitered grooved that fold around the structural post and lock together with a friction-fit lockmiter joint. Just apply your PVC glue, fold the VERSAWRAP around your structural column, secure in place, peel the tape, and walk away.

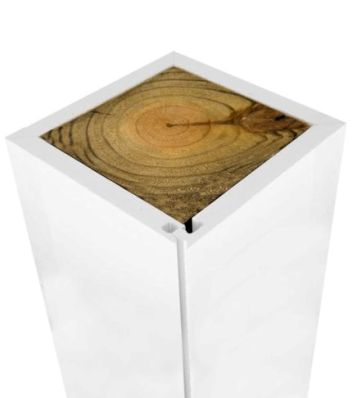

INTERLOCKING DESIGN Wolf Column Wraps feature a patented snap design to make installation quick and simple.	Versatex Raised Panel design as a one-piece wrap with accessory options

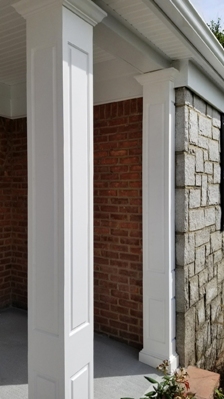

RAISED PANEL VERSAWRAP
Nominal Size	Actual Inside	Actual Outside	8’6”	10’
6” x 6”	5 3/4” x 5 3/4”	6 3/4” x 6 3/4”
8” x 8”	8 1/2” x 8 1/2”	9 1/2” x 9 1/2”

• Raised Panels start 16 1/2" from the bottom with a railing gap from 30 3/4" to 38 1/2". Clearance above the top panel measures 8 3/4".
• For best aesthetic results in Raised Panel applications, painting is recommended to prevent dirt accumulation where panel is milled into product.

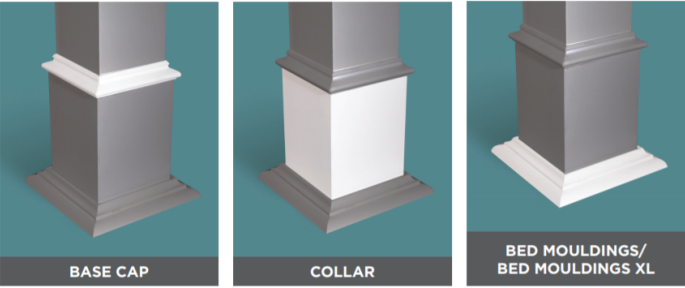

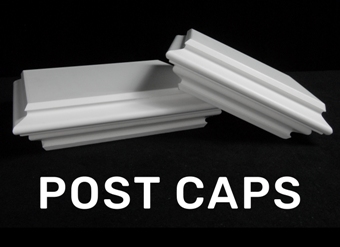

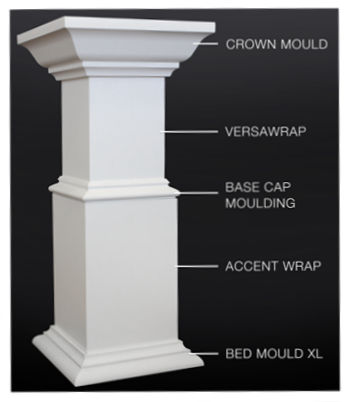

Column Wrap Accessories

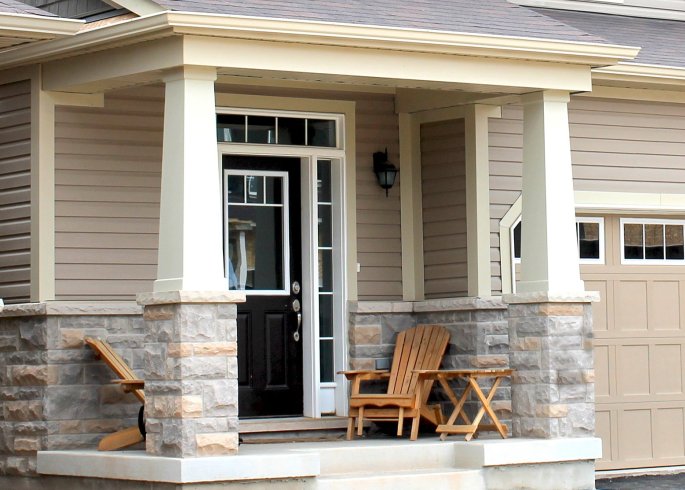

FOUR-PIECE TAPERED VERSAWRAP

Our four-piece Tapered column wrap provides the same convenience of the one-piece VERSAWRAP for a craftsman style project. Four pre-cut panels each have friction-fit miter lock joints to eliminate the calculations and cuts required to ensure the right angle for each panel.

Actual Sizes	5' Length	6' Length
12" base / 8" cap
16" base / 12" cap

• Each Tapered wrap includes squaring corners for fastening and 3 1/2" optional decorative skirt accessories.
